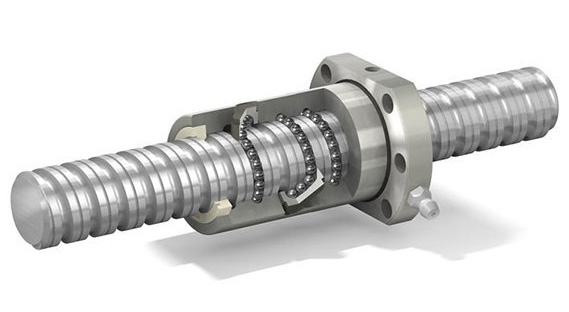

The Ball Screw - The Drive Element
Ball screws are among the most frequently used drive elements. With the advancing electrification of products, they are also opening up new areas of application in which mostly hydraulic systems have been used so far. Prominent examples include actuators for presses and power steering systems as well as aircraft landing flaps and helicopter rotors.
Due to the new areas of application, new types of strains arise and thus ever greater demands on the precise torque force transducer. In the past, ball screws had to absorb purely axial forces, but nowadays they have to absorb large radial forces and tilting moments. In some cases, the loads exceed the yield strength of the material.
The classical methods of interpretation, such as i.e. the DIN Standards, are no longer sufficient because they assume an even distribution of forces on the individual balls and presuppose generous safety factors.
Whoever wants to save time and money in the design of heavy-duty ball screws and at the same time achieve high quality results for their customers, relies on the simulation of ball screws.

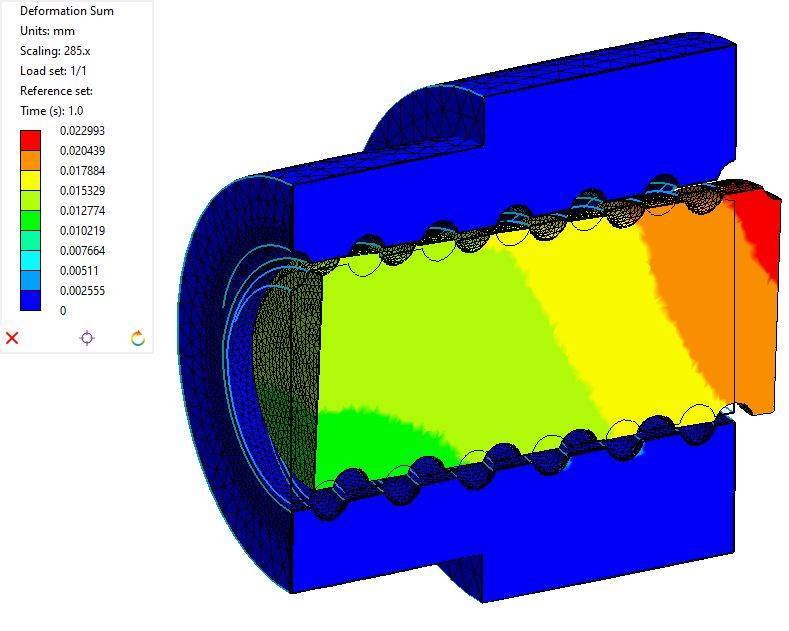

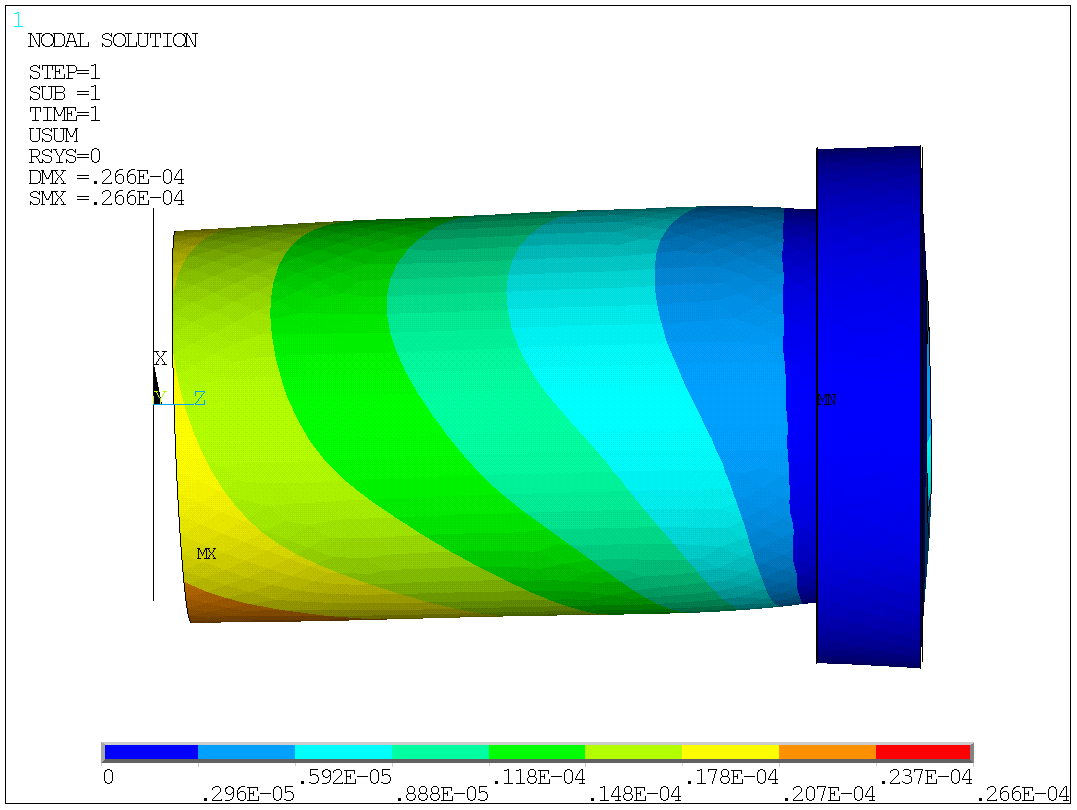

Simulation of ball screws

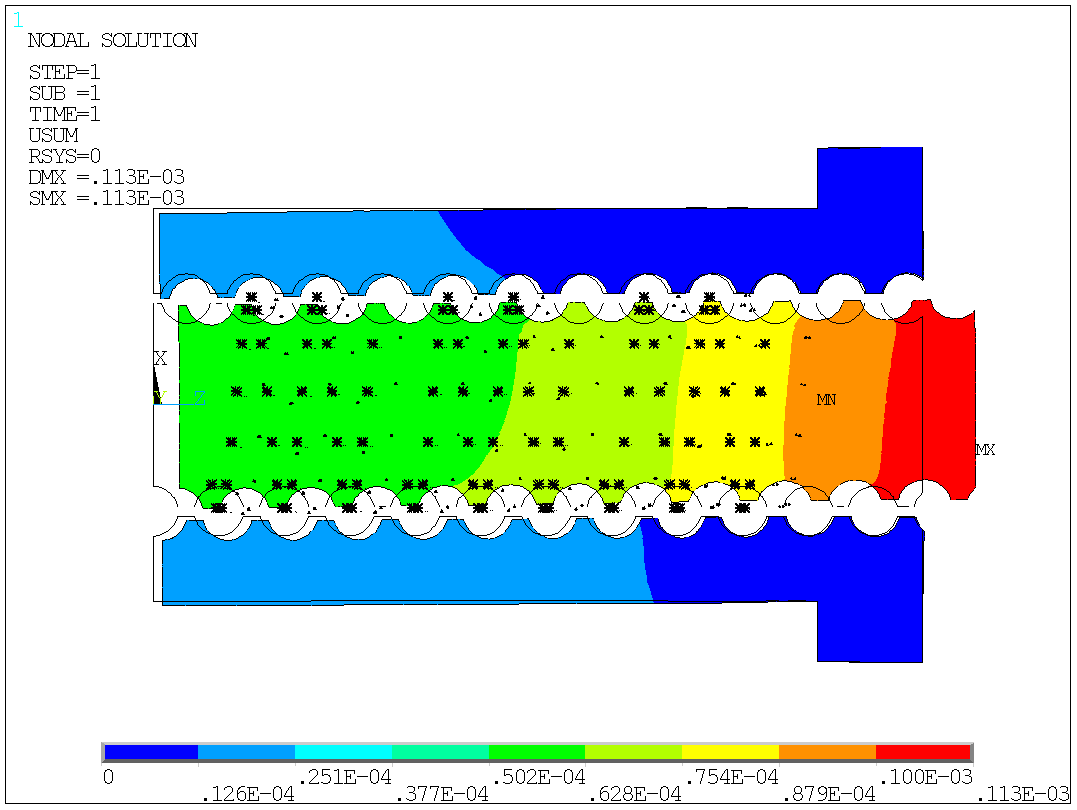

Correctly used, the simulation of ball screws allows an optimal design with very low safety factors. This is typically demanded by the aircraft industry for weight-saving reasons. Due to the precise calculation of ball forces and pressures, service life calculations can be carried out more reliably. Combined load cases are also not problematic - something that is otherwise only possible to a very limited extent in DIN-based design. In most cases, simulation can replace test benches, prototypes and tests. Furthermore, the influence of the surrounding construction (i.e. rolling bearing of the spindle etc.) can be taken into account in the simulation. The computer-aided engineering of ball screws ultimately allows automated parameter studies to select the best design from a wide range of possibilities. The most important achievement of the ball screw simulation is the adaptive optimization of the ball preload. The aim of adaptive ball pre-tensioning is to adapt the geometry of the ball track or balls in the individual ball chains according to the load so that all balls in contact with each other bear the same load as far as possible.
Pioneer work in the simulation of ball screws
We at Meshparts have a wealth of experience in the behaviour of ball screws and the most modern methods for efficient simulation of them. The "Simulation of Ball Screws" division has been being developed in our research environment since 2011 and is based on preliminary work that was carried out a few years before. Since then, we have continued the pioneer work of the simulation of ball screws with maximum efficiency. Maximum efficiency means high accuracy of results with minimal effort. This claim concerns the modelling of ball screws, their calculation and evaluation of results.
In the course of time there were many moments when we thought we had finalized the development of the simulation of ball screws. However, new ideas arose within the scope of customer projects and practical applications, which then improved our products beyond all previous efficiency limits. We are always wondering what else might be possible. We now know that development is never-ending. We do all this because of an internal driving force, that lays in the conviction that the manufacturers of ball screws need a simulation solution that was created in practice for practical use. We simply know that good software and services do not have to be expensive if the processes are optimized and specialized.
Two solutions for the simulation of ball screws
What can we offer you to simulate and optimize your ball screws? Our offer is structured as follows:
- If you want need simulation only rarely, we recommend our Simulations services.
- If you want to simulate more often, we recommend our Software together with the Model Library for Ball Screws.

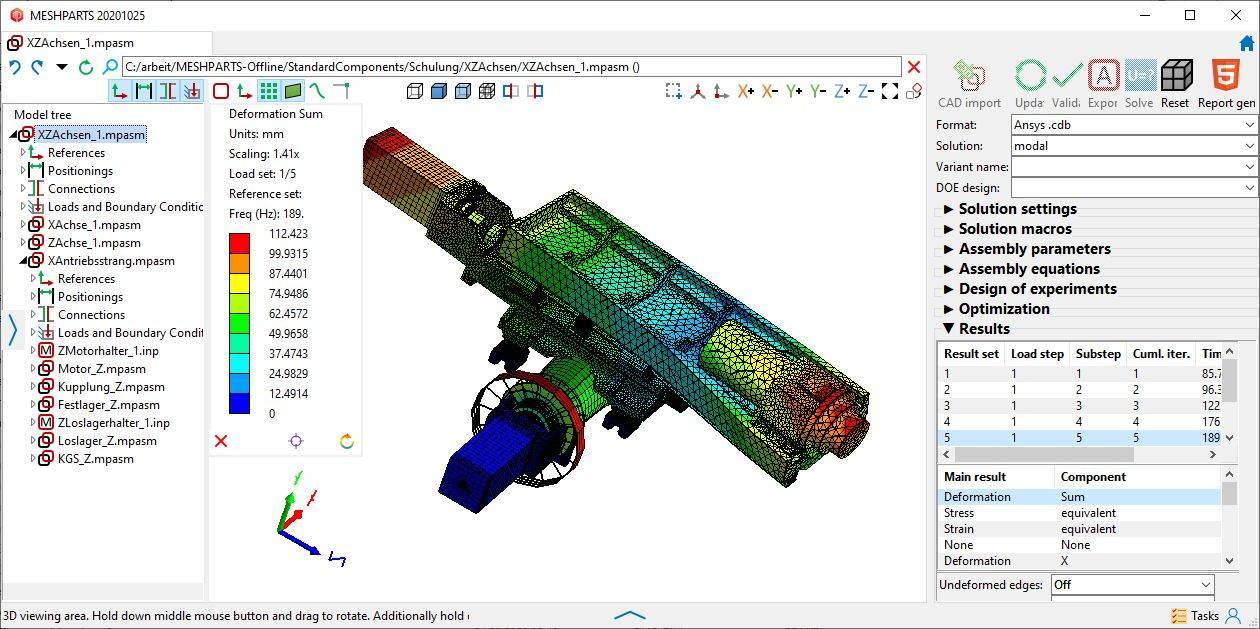

Software for the simulation of ball screws
Our software related to Ball Screw Model Library will be installed locally. You have the possibility to calculate any number of design variants of ball screws. The software is available as an annual or monthly subscription. We provide choice standard support (up to 8 hours per year) or intensive maintenance and support (8 hours per month). For this we recommend a one-day training.
