Advanced and easy to use
The software for precise finite element simulation
Simulate at an expert level with just 1 day of training. Reduce your development costs and optimize your products.
Easy
Steep learning curve with quick results. Meshparts is easy to learn and automates your simulation processes after a very short time.
Precise
Avoid modeling effort, costs and errors by using our intelligent assistance systems
Safe
Use our model library to avoid calculation or modeling errors.
Precision through automation and practical testing
Accurate results
Validation through practical use
In numerous customer projects, the simulation results generated with mesh parts were compared with measurements. Deviations of less than 5% are often achievable.
Validation through practical use
When building a complex FE model, it is usually necessary to weigh up the effort and the necessary accuracy. The more assumptions you make to simplify, the greater the potential for error. Meshparts takes a different approach here: through automated model creation, highly accurate models can be created with minimal effort.
Work more efficiently
Intelligent assistance systems

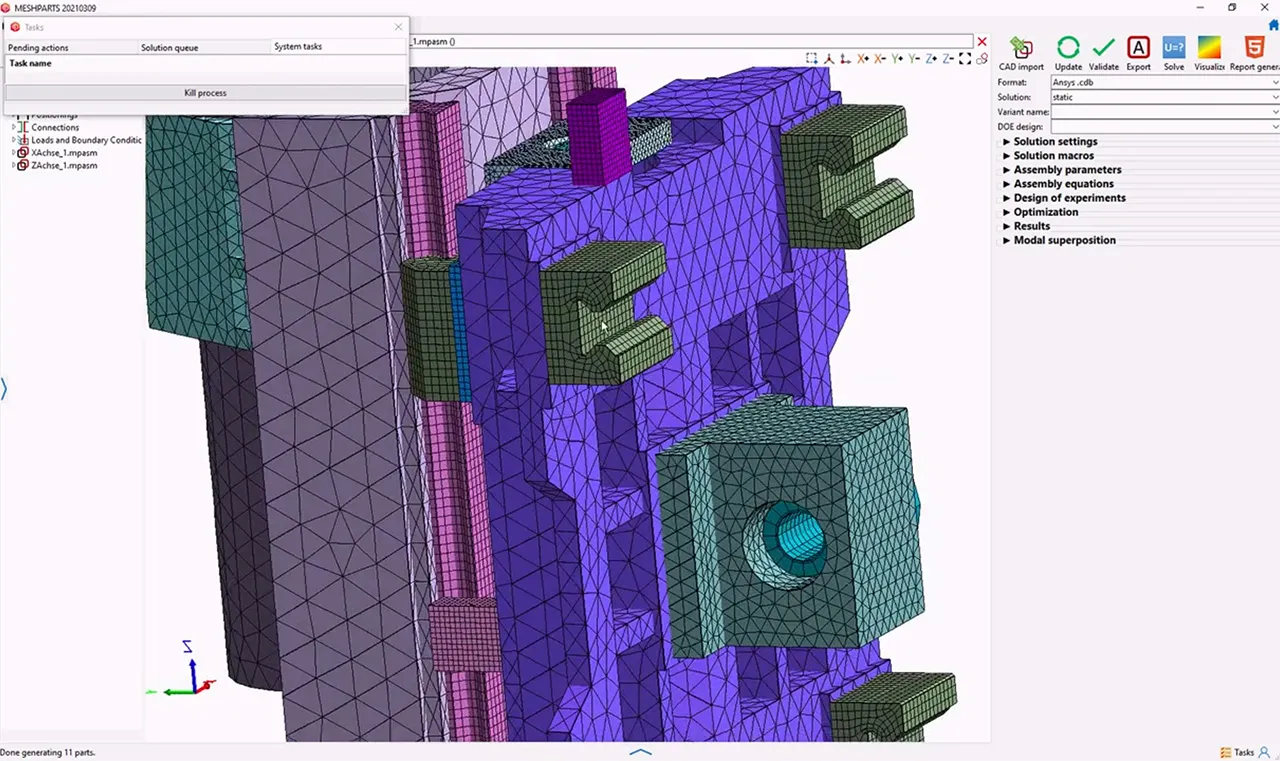

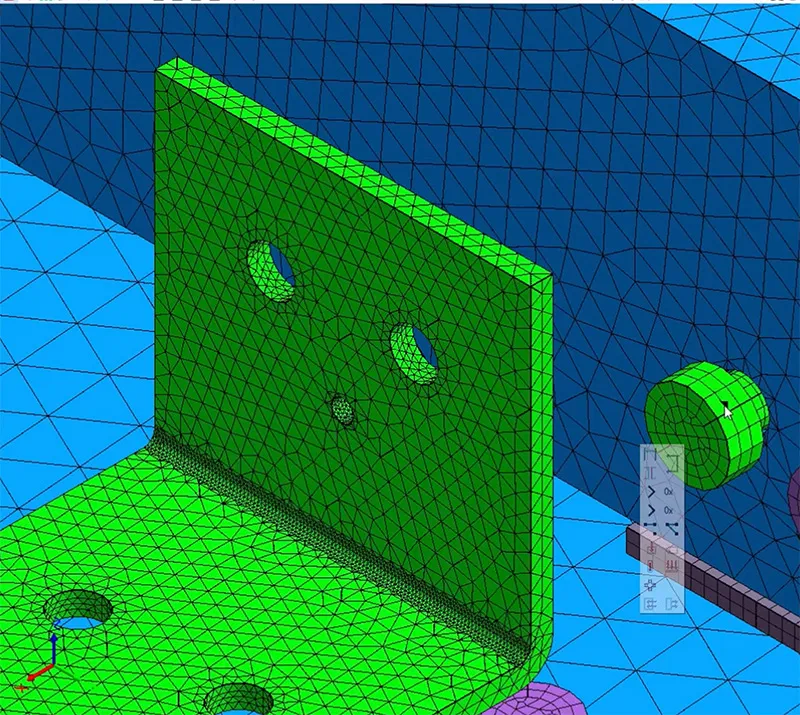

The right FE mesh
Developing a feeling for the correctness of an FE mesh requires experience. Meshparts gives you the ability to choose from intelligent mesh presets as well as complete freedom to customize meshes yourself. This means you have control over your FE networks regardless of your level of knowledge.
The right contacts
Accurate simulations

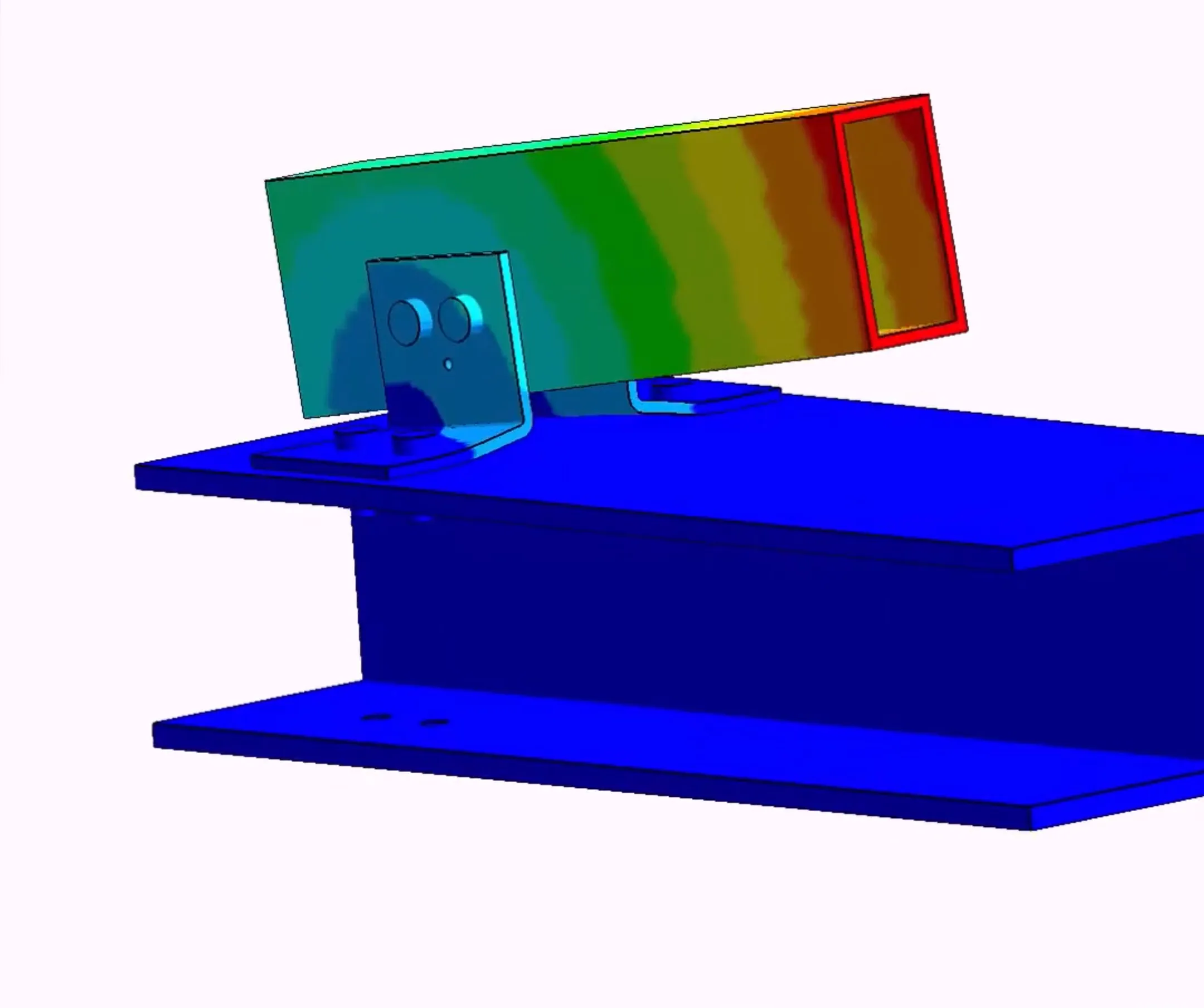

Structural Mechanics
Screw strength certificates VDI 2230
Static and dynamic strength verification for bolted connections according to VDI 2230: just the push of a button.
Stress and contact analysis
Determination of fracture points and components, load-bearing capacity of weld seams, service life calculation based on contact pressure.

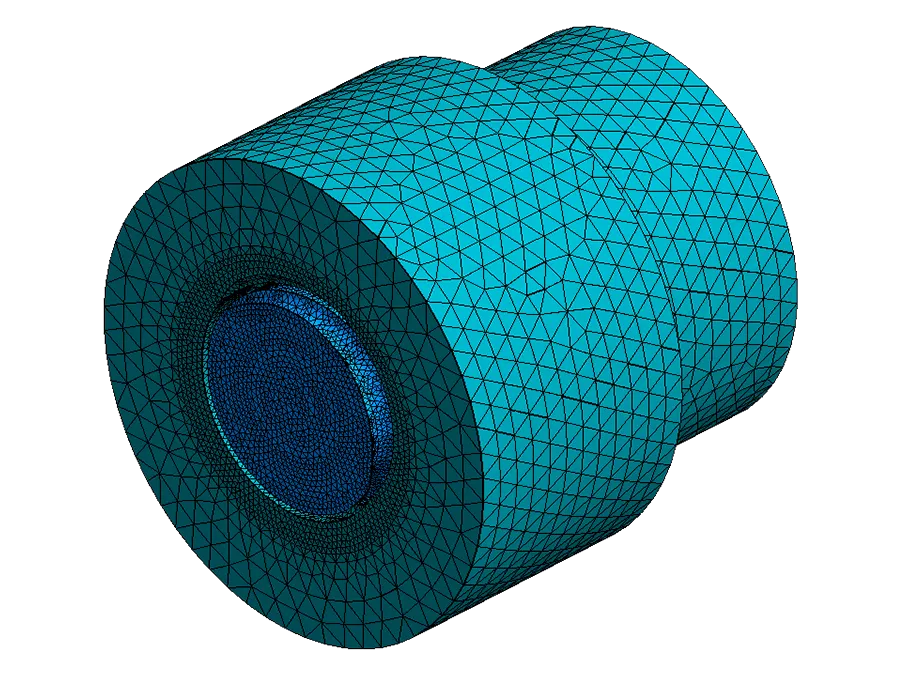

Simulation of rolling bearings and ball screws
Thanks to Meshparts' specialized and predefined FE models, you can simulate all typical components with rolling contact (balls, cylindrical or tapered rollers) in high detail and efficiently in assemblies and without expert knowledge. Find out more about the simulation of rolling bearings or ball screws.
Precise simulations

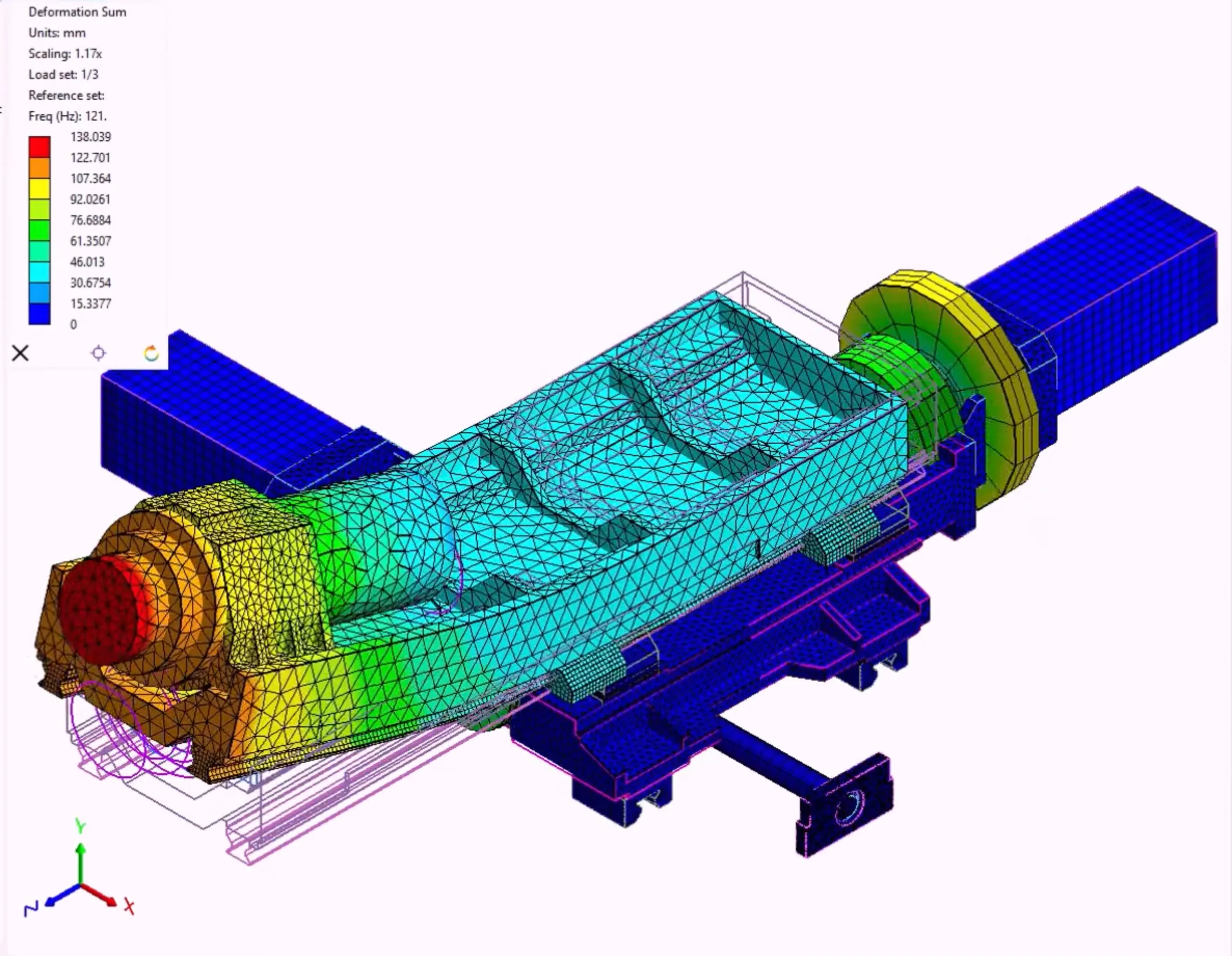

Structural dynamics
Modal analysis
Identification of dangerous resonance points.
Frequency response analysis
Determination of vibration amplitudes at selected locations.
Coupled controller-mechanics simulation
Quantitative assessment of the performance of controlled systems (e.g. machine tools or handling systems), compliance with repeatability and manufacturing accuracy.
Automatic integration

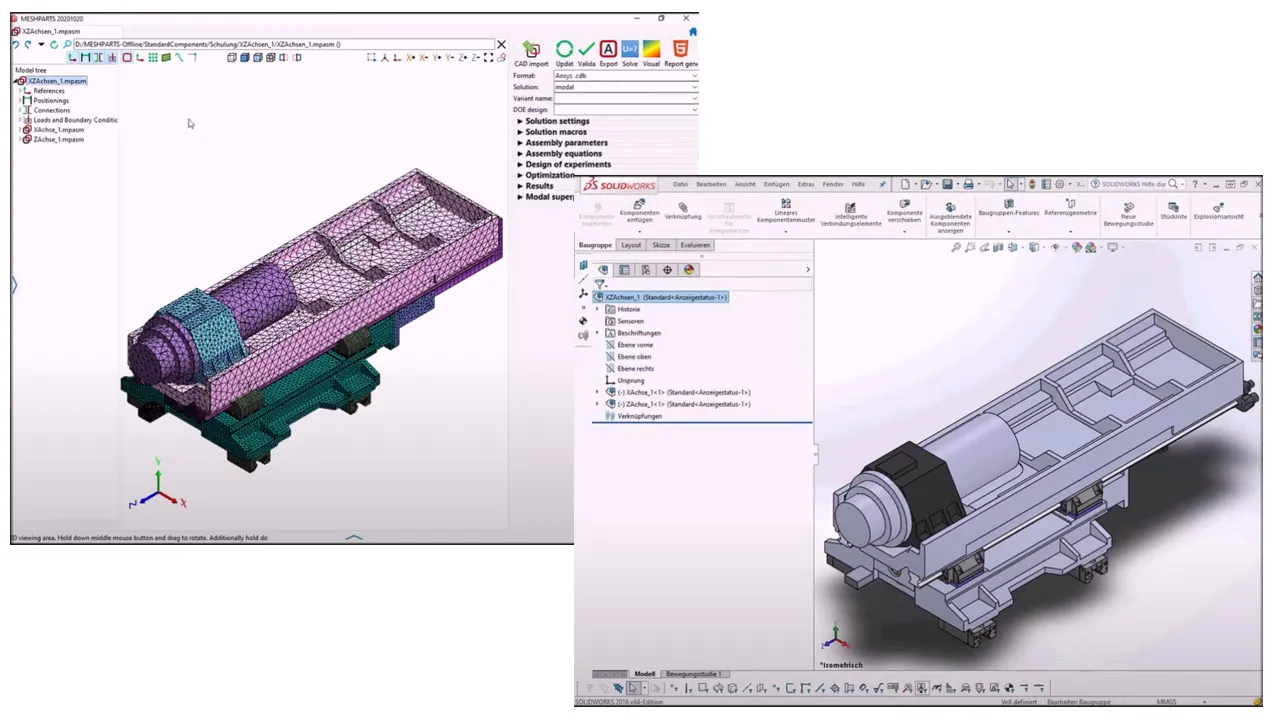

CAD twin
100% symmetry between CAD and mesh parts
The CAD twin is a finite element model in which both the assembly and file structure are identical (symmetrical) to the CAD model.
Fast model iterations
The CAD twin allows quick local changes to individual parts regardless of the complexity of the overall assembly.
Know-how and immediate help
Live Support
No waiting on hold and no tickets that take several days to process. Contact one of our developers in real time via video conference.
A member of the Meshparts development team with deep industry know-how will answer your questions and help you solve any problems.
A member of the Meshparts development team with deep industry know-how will answer your questions and help you solve any problems.
Part Mappings
Automatic part mappings
The part mappings enable the Meshparts software to learn. With each new model you become faster and faster in modeling FE assemblies.
Realistic behavior
Live simulation
Fast thanks to RISTRA
Optimize the stiffness and strength of your components in seconds. The optional GPU-based solver RISTRA solves in fractions of a second.
Accurate and coupled with the CAD
All design changes are carried out in the usual CAD environment and you receive highly accurate FE results at the push of a button.
Iteratively to the optimized product
Watch this video to see how the stresses within a gearbox housing can be halved within 3 quick design adjustments.
"Short-term and quick processing, in-depth specialist knowledge in the machine tool sector"
Dr. Hubertus Zeddies
Technical Management, Minda Industrieanlagen GmbH
Realistic behavior

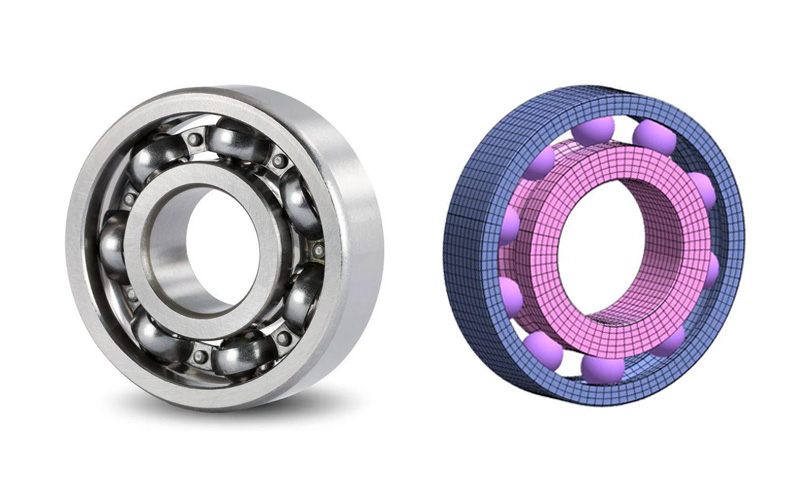

Model library with 60,000 parts
Get access to a comprehensive library of over 60,000 precise and parametric component models and avoid modeling effort, costs and errors. You can also create your own company libraries using automated templates.
Work more efficiently

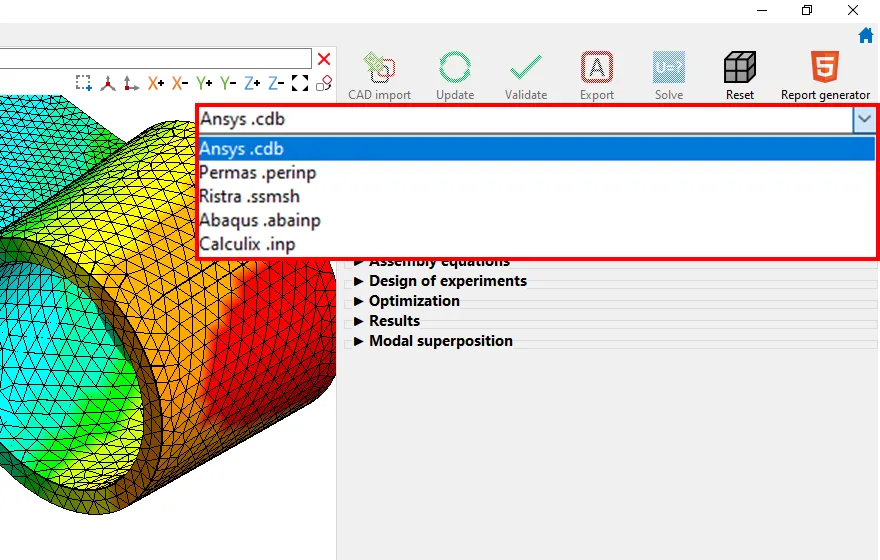

Multi solver
Long-term stable
The solvers work in the background without the user having to do anything. Future solver developments will not change your user experience in our software.
Solver comparison
Clients
Industry-leading companies rely on Meshparts
Request a free potential analysis
Discover what added value Meshparts can offer your company in a free potential analysis with one of our experts.
