1. Chain analysis

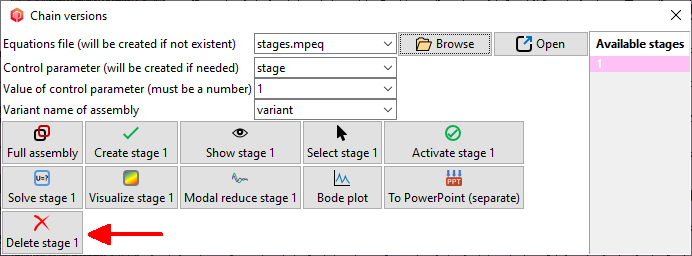

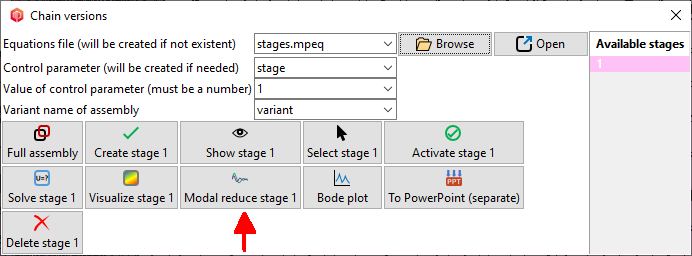

New button "Delete stage" available in the chain versions tool.
New button integrates multiple modal superposition.

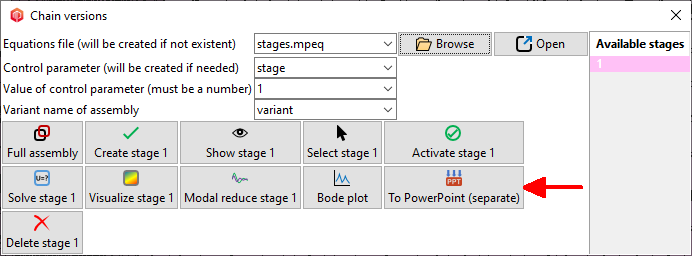

New button "To PowerPoint (separate)" available in Chain Version tool. The new button automatically inserts a picture of each model stage into the currently opened PowerPoint presentation starting at the current active slide.
2. Bode-Plots

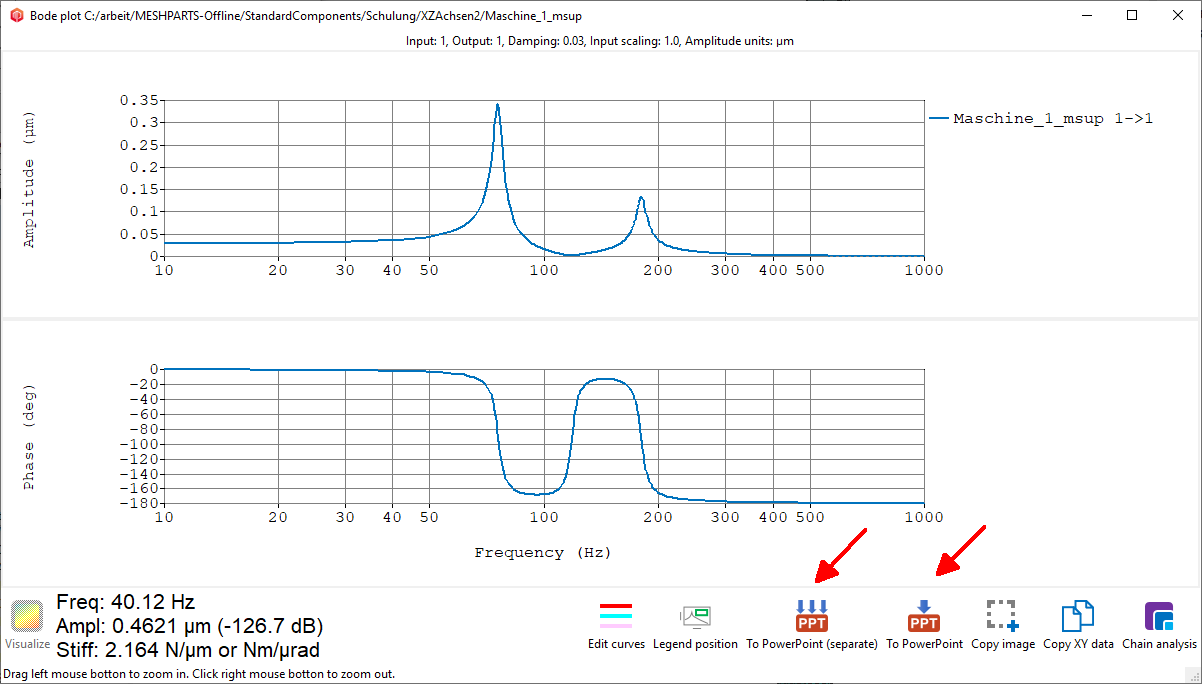

New buttons "To PowerPoint (separate)" and "To PowerPoint" available in Bode plots. The first button automatically inserts a picture of each curve of the Bode plot into the currently opened PowerPoint presentation starting at the current active slide. The second button automatically inserts a picture of the complete Bode plot into the currently opened PowerPoint presentation and active slide.
3. Results at picked item

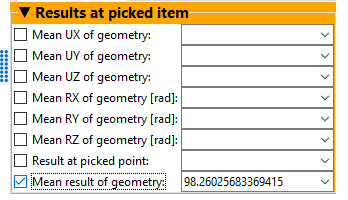

New feature: mean result on picked geometry available in the "Results at picked item" frame.
4. Bode-Plots

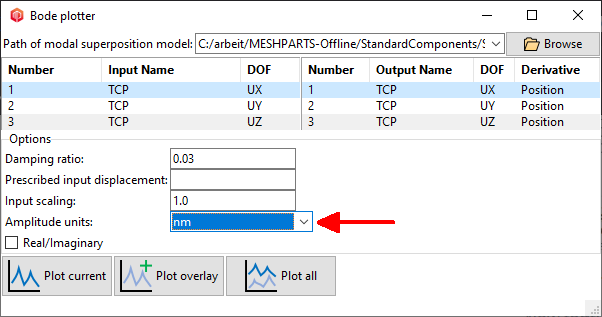

New unit available for bode plots (nm - nanometer).
5. Assembly equations

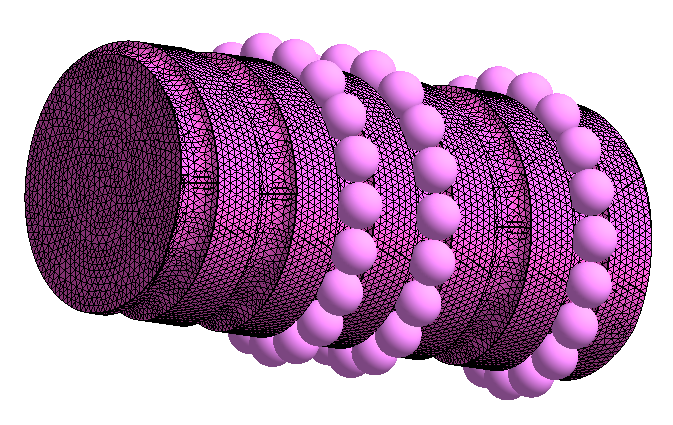

New assembly equations function: helix2 which is applied to a range of model IDs. The use of this function is to apply a helix pattern to multiple ball instances in a ball screw assembly.
6. Connections

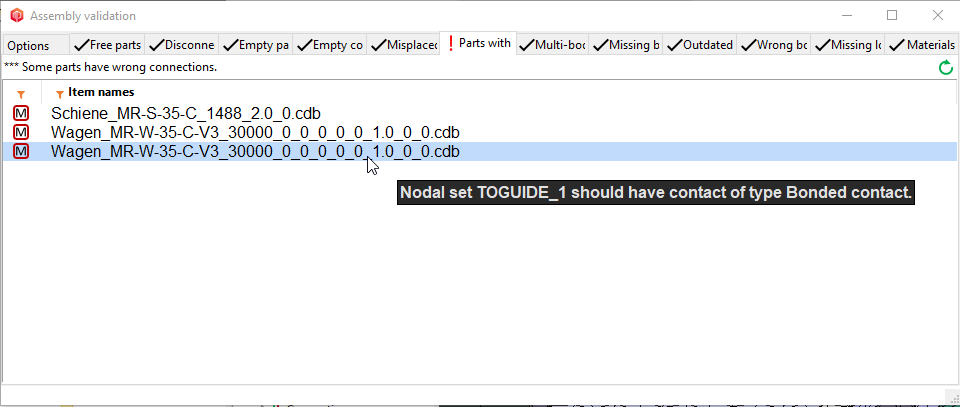

New logic allows for parent files to define which interfaces and which type of contact should be used for connections. This new data also defines which type of contact should be used (e.g. Bonded or Friction). Finaly, the data is used in the assembly validation. The new feature significantly improves the validation of connections. When many bolts or blind rivets are used, it also completly automates the contact definition.
7. Joints

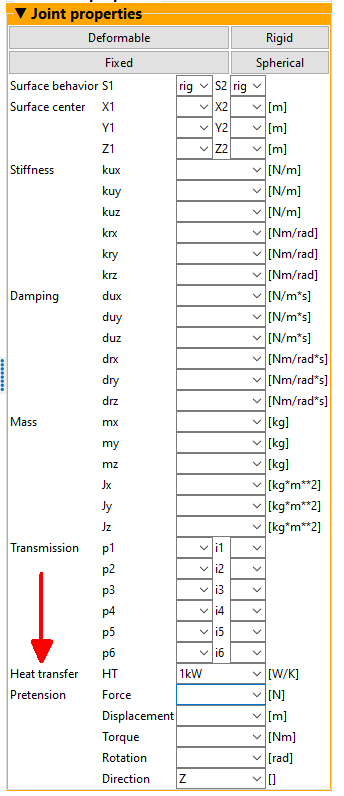

New feature: "Heat transfer" available as connection joint property.
8. Solving

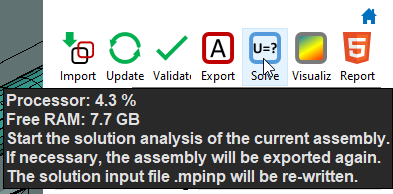

New feature: Tooltip of solve button shows current state of RAM and CPU.
9. Find in model tree

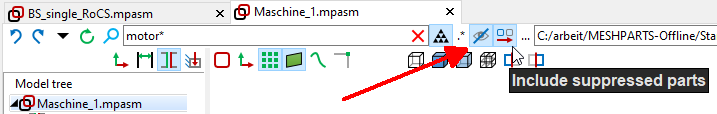

New find option for model trees: Hidden or suppressed elements can be excluded from search.
10. Parts generation
New feature: On the fly parts generation, when only material parameters are changed. The time consuming remeshing is not needed anymore.

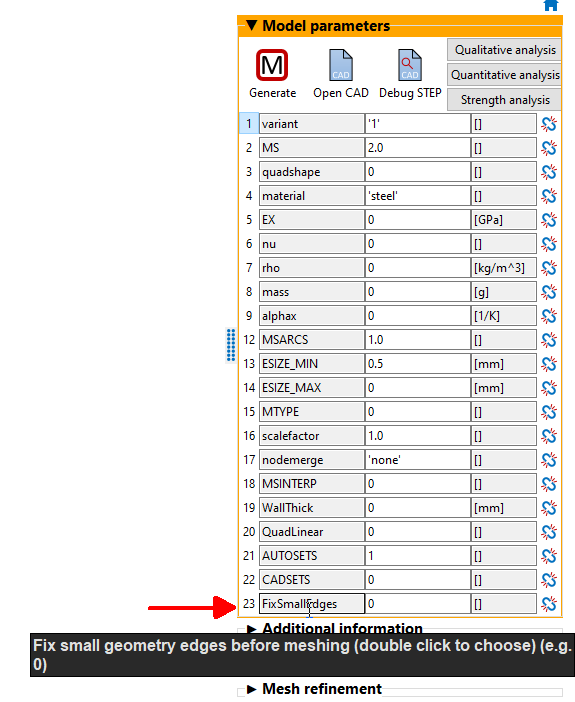

New parameter for geo parent files: FixSmallEdges. Activating this parameter can fix meshing issues in some situations.

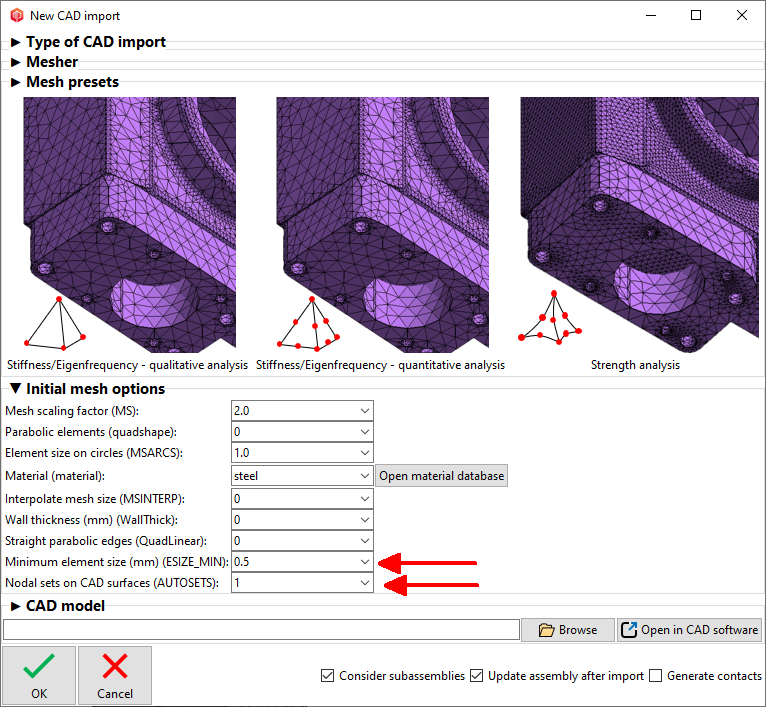

Added ESIZE_MIN and AUTOSETS options to the CAD import window.
11. Animations
New feature available for animations: Auto save animation. When activated, the animation is automatically saved when a new animation is started.
12. Edit relations
New button "Change also in all other connections" available when editing relations. When activated, the change is applied to all other similar connections, that relate to the same changed geometry item.
13. Report generator

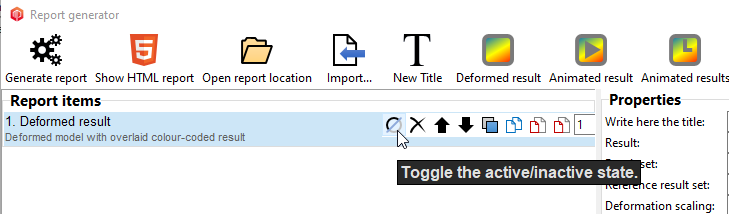

New button in report generator available for quick activate/deactivate the hovered item.

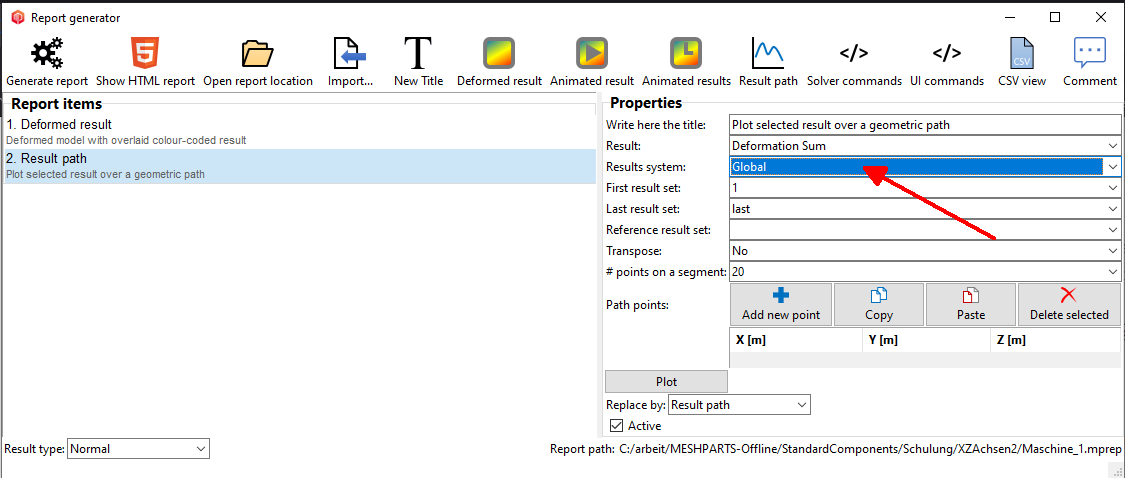

Improved report generator with new option "Results system" added to the properties of result paths.
14. HighDetail Models

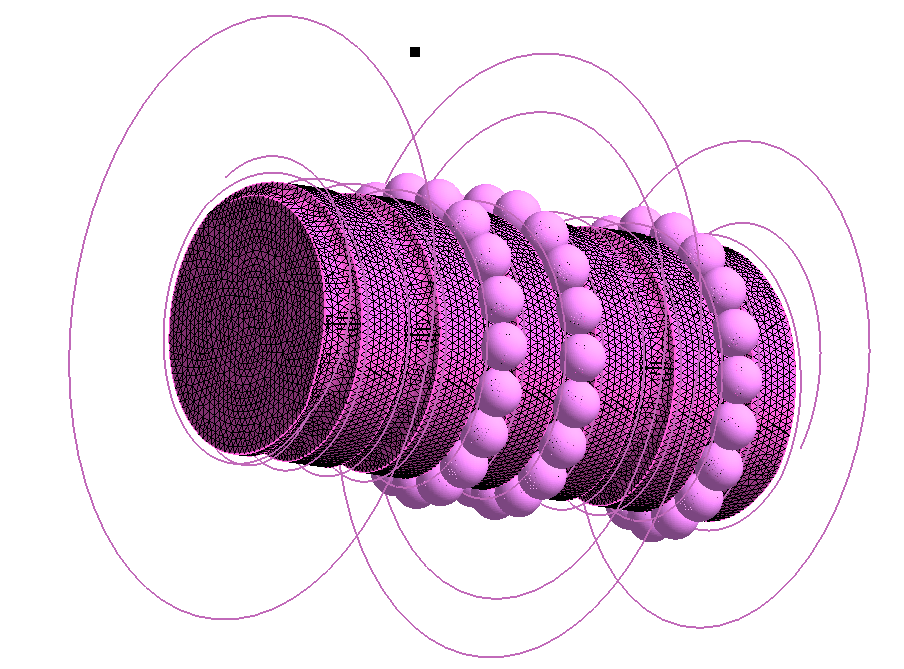

New internal feature allows to directly connect HighDetail ball and roller models with other parts. Specifically, the nodal sets of the rolling elements can have contact with the entiere rail surface. The software autmatically filters needed contact nodes.
Improved display of Ball models (now with 3D representation).

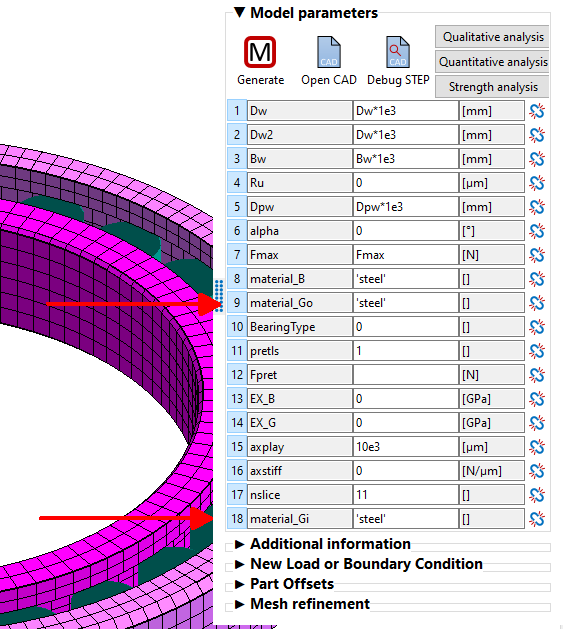

Add support for two materials (inner and outer ring) for all Roller_RoCS models. The related models in the library are updated and only compatible with this release and newer.
15. Selection
Improved usability of the quick access frame. The frame is not shown if the user hold the CTRL key down. After the user releases the CTRL key, the frame is shown.
16. Section views

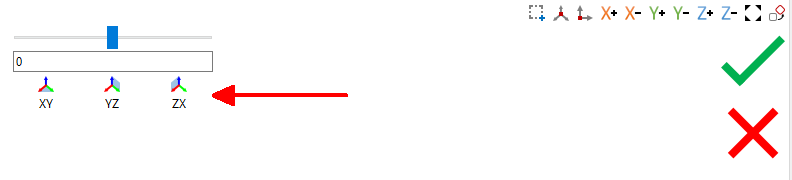

Improved section plane setting. New buttons allow to select one of the main assembly planes.
17. Explosion views
Improved explosion button, which now can toggle between exploded and default view.
18. Submodeling

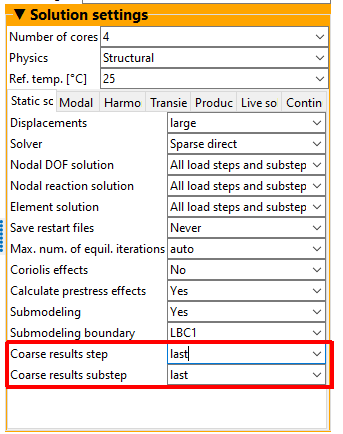

Improved sub-modeling: The submodeling load step can be one of multiple available load steps.
19. Performance
Significant increased speed when selecting and displaying model files with lots of surfaces.
Significant performance increase when modifying LBC properties or suppressing/deleting model tree items.
Significant speed increase when searching for contact surfaces.
Significantly increased performance when dealing with large compound LBCs.
Significant reduced memory consumption when generating connections.
Significant (at least one order of magnitude) speed increase when processing trimmed contact.
20. Material database
Add support for temperature dependent elasticity modulus and thermal expansion coefficient.
